Bend Conveyor
Turn the line without losing control of the product.
A directional change built around the floor plan.
The Nutrimatics Bend Conveyor changes product direction through a controlled curve, with the radius, conveying surface, guides, and transfer points configured around the customer's layout and product.
When a production line has to turn, the conveyor should solve the layout problem without creating skew, jams, drops, or awkward manual handling.
Designed to preserve product flow through the curve.
Turn angle, inside radius, conveying surface, side guides, transfer geometry, and available space are selected around the product and the plant floor.
Speeds, heights, discharge position, guarding, and controls are matched to the connecting conveyors so the turn becomes part of the line instead of a problem point.
A controlled turn through limited space.
The bend demonstrates line routing without manual repositioning, while keeping product orientation and transfer geometry under control.
What the build solves
Layout-driven design
Turn angle, radius, conveyor footprint, and support points are built around the plant floor.
Product control through the curve
Surface, guides, and transfer geometry are selected around product stability and orientation.
Smooth integration
Speeds, heights, and discharge position can be matched to connecting conveyors.
Custom construction
Belt, modular belt, roller, chain, guarding, and controls are specified only around the confirmed build.

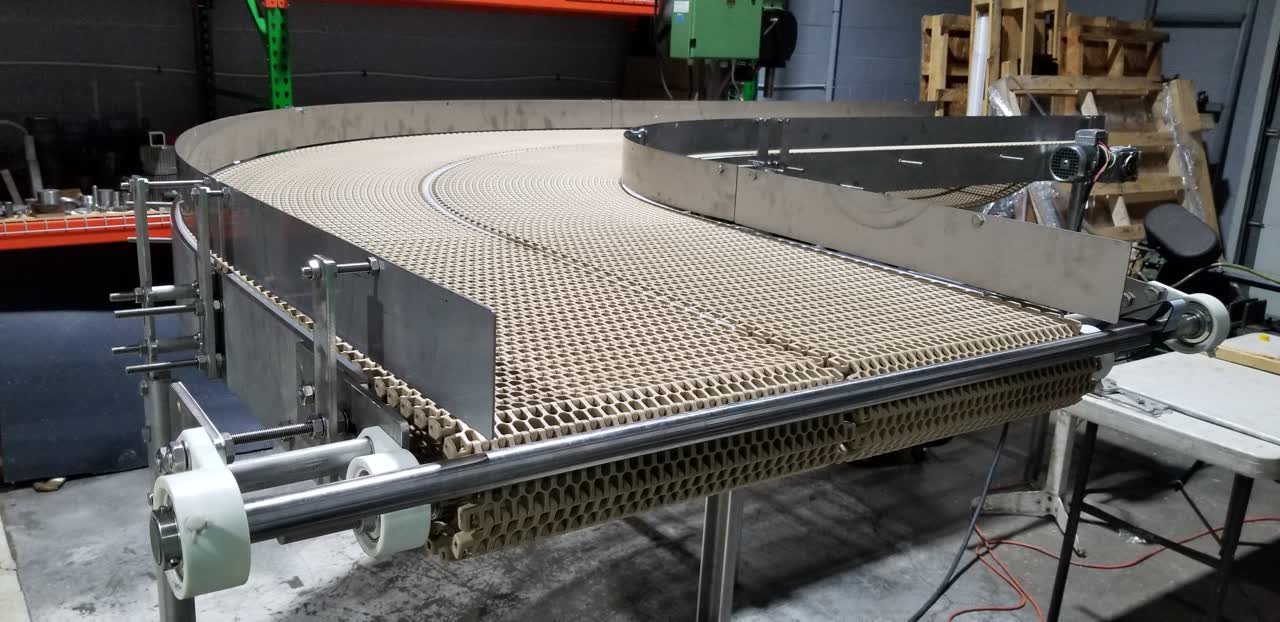

Radius and guides selected around the product.
The frame, conveying surface, and side guides are matched to the turn angle and product behavior required by the customer's layout.
Specifications
- Controls
- NEMA 4X control panel.
What we need to shape the build
- Turn geometry
- Required turn angle, inside radius, available footprint, and support constraints.
- Product behavior
- Size, weight, stability, orientation, and sensitivity through the curve.
- Line connection
- Upstream and downstream conveyor height, speed, discharge position, and transfer needs.
- Plant details
- Side guides, accumulation, cleaning, guarding, controls, and access requirements.
Send the product, package, available space, target output, and upstream/downstream equipment. We will design the machine around the line.
Ready to discuss your Bend Conveyor?
Send us a description of your requirements and limiting parameters, and we'll shape the machine around the real line.
